Milk Cooling Tank Storage Tank Milk Cold Tank Yogurt Tank
Milk cooling tank 300Litres to 12000Litres.
1000 liter milk cooling tank price
milk cooling tank milk storage tank fresh milk tank raw milk tank
Cusotmized milk cooling and storage tanks
Customized electricity,, capacity
Milk Cooling Tank Storage Tank Milk Cold Tank Yogurt Tank
| ITEM | Vessel Capacity(L) | Refrigeration power (W) | Rotation speed | Matched power | L× W× H | Refrigerant | Power supply |
| LH-M0.5 | 500 | 5322 | 33r/min | 3KW | 2200× 1350× 1150 | R404A(R22) | 380V/3/50Hz |
| LH-M1 | 1000 | 8842 | 33r/min | 4.5KW | 2200× 1350× 1550 | R404A(R22) | 380V/3/50Hz |
| LH-M1.5 | 1500 | 9214 | 33r/min | 5KW | 2200× 1200× 1750 | R404A(R22) | 380V/3/50Hz |
| LH-M2 | 2000 | 16221 | 33r/min | 6KW | 3300× 1500× 1700 | R404A(R22) | 380V/3/50Hz |
| LH-M2.5 | 2500 | 16221 | 33r/min | 7KW | 3700× 1450× 1500 | R404A(R22) | 380V/3/50Hz |
| LH-M3 | 3000 | 17221 | 33r/min | 7KW | 3950× 1500× 1700 | R404A(R22) | 380V/3/50Hz |
| LH-M4 | 4000 | 21500 | 33r/min | 14kw | 3950× 1900× 1850 | R404A(R22) | 380V/3/50Hz |
| LH-M5 | 5000 | 28442 | 33r/min | 14KW | 4200× 2100× 2000 | R404A(R22) | 380V/3/50Hz |
| LH-M6 | 6000 | 32000 | 33r/min | 14KW | 4200× 2100× 2200 | R404A(R22) | 380V/3/50Hz |
| LH-M8 | 8000 | 41668 | 33r/min | 19KW | 5200× 2200× 2150 | R404A(R22) | 380V/3/50Hz |
| LH-M10 | 10000 | 51360 | 33r/min | 23KW | 6000x2200x2150 | R404A(R22) | 380V/3/50Hz |
| LH-M12 | 12000 | 51360 | 33r/min | 23KW | 6000x2200x2300 | R404A(R22) | 380V/3/50Hz |
| LH-M15 | 15000 | 65200 | 33r/min | 30KW | 7000x2200x2400 | R404A(R22) | 380V/3/50Hz |

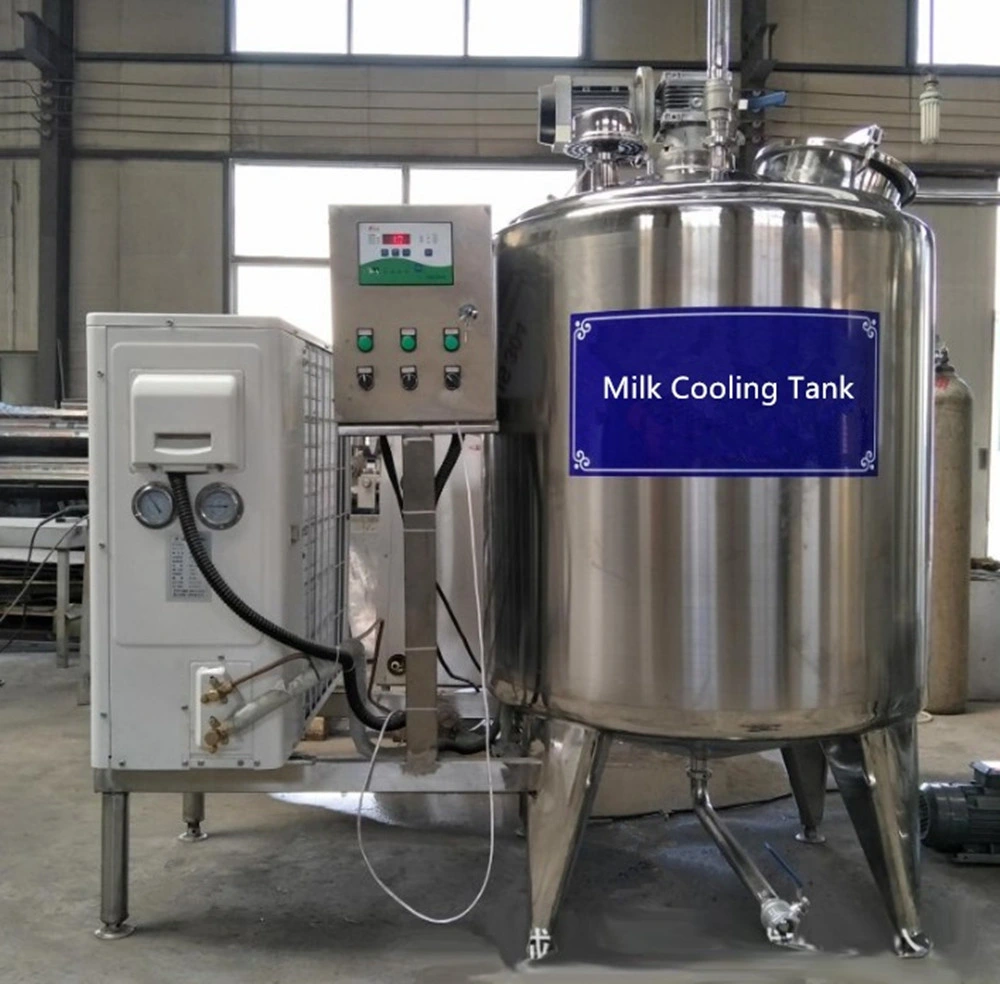

SS304 MILK COOLING TANK
producing milk cooling tanks, collection centres, tubular coolers, milking machine components, pasteurisers, ice water
Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.
The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device
