Laboratory Wiped Film Short Path Molecular Distiller Essential Oil Distillation Equipment for CBD and THC Oil
Introduction of Short Range Molecular Distillation
Molecular Distillation is a special liquid-liquid separation technology, which is different from traditional distillation on the difference boiling point. This is a kind of distillation in high vacuum environment, for the difference of material
molecular movement free path, was carried out in the heat sensitive material or high boiling point material distillation and purification process. Short Path Distillation is mainly used in chemical, pharmaceutical, petrochemical, spices, plastics, oil and other fields.
Instrument Features
1. High evaporation efficiency and reduced retention time, with minimal time delay.
2. Short path distillation is made from high borosilicate glass 3.3 and PTFE, which have excellent corrosion resistance.
3. Main body of Short path distillation is made of high borosilicate glass 3.3, allowing the whole process to be observed very clearly.
4. High-precision distillation barrel allows the liquid to form a complete and unified thin film on the heated surface. The smooth inner surface, avoid stick and scaling.
5. German technology brand frequency conversion deceleration motor, with self-cooling fan, long time continuous working.
6. Magnetic force transmission make film forming system separate from motor, the top sealing of distillation barrel have no dwang through. The whole System performs a completed sealing. The minimum vacuum pressure is up to 0.001mbar.
7. Highest temperature of the system can reach 230ºC/300ºC, accurate temperature control can be realized.
8. Max. theory vacuum degree can reach 0.05mbar or0.001mbar (Should equipped with Secondary Diffusion Vacuum Pump).
9. Scraper Model and self-cleaning roller Model film forming system are available.
Technical Parameters
Options Components
Physical Photo
Our Service
Molecular Distillation is a special liquid-liquid separation technology, which is different from traditional distillation on the difference boiling point. This is a kind of distillation in high vacuum environment, for the difference of material
molecular movement free path, was carried out in the heat sensitive material or high boiling point material distillation and purification process. Short Path Distillation is mainly used in chemical, pharmaceutical, petrochemical, spices, plastics, oil and other fields.
Instrument Features
1. High evaporation efficiency and reduced retention time, with minimal time delay.
2. Short path distillation is made from high borosilicate glass 3.3 and PTFE, which have excellent corrosion resistance.
3. Main body of Short path distillation is made of high borosilicate glass 3.3, allowing the whole process to be observed very clearly.
4. High-precision distillation barrel allows the liquid to form a complete and unified thin film on the heated surface. The smooth inner surface, avoid stick and scaling.
5. German technology brand frequency conversion deceleration motor, with self-cooling fan, long time continuous working.
6. Magnetic force transmission make film forming system separate from motor, the top sealing of distillation barrel have no dwang through. The whole System performs a completed sealing. The minimum vacuum pressure is up to 0.001mbar.
7. Highest temperature of the system can reach 230ºC/300ºC, accurate temperature control can be realized.
8. Max. theory vacuum degree can reach 0.05mbar or0.001mbar (Should equipped with Secondary Diffusion Vacuum Pump).
9. Scraper Model and self-cleaning roller Model film forming system are available.
Technical Parameters
| Model | Effective Evaporation Area (M2) | Internal Condensation Area (M2) | Outer Condensation Area (M2) | Barrel Inside Diameter (MM) | Constant Pressure Feeding Funnel Volume (L) | Processing Flow (KG/H) | Motor Power (W) | Max Rotation Speed (RPM) |
| FMD-60B | 0.05 | 0.10 | 0.20 | 60 | 1.5 | 0.1~2.0 | 120 | 450 |
| FMD-80B | 0.10 | 0.15 | 0.25 | 80 | 1.5 | 0.3~4.0 | 120 | 450 |
| FMD-100B | 0.15 | 0.20 | 0.3 | 100 | 1.5 | 0.5~5.0 | 120 | 450 |
| FMD-150B | 0.25 | 0.40 | 0.6 | 150 | 1.5 | 1.0~8.0 | 120 | 450 |
| FMD-200B | 0.35 | 0.50 | 0.6 | 190 | 1.5 | 1.5~10.0 | 200 | 300 |
| FMD-230B | 0.50 | 0.65 | 0.6 | 220 | 1.5 | 2.0~15.0 | 200 | 300 |
Options Components

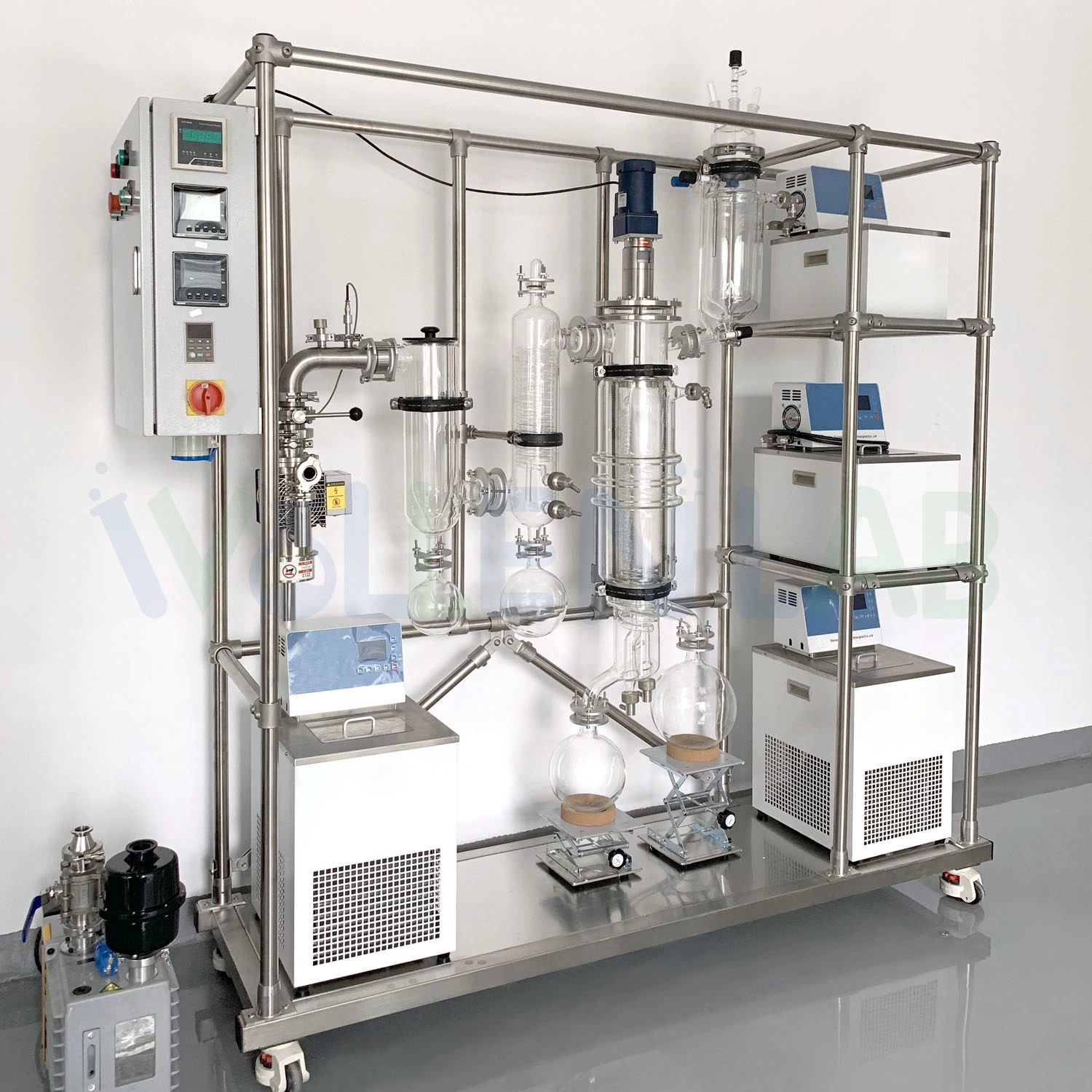

Physical Photo
Our Service
